The C-frame press derives its name from the shape of the frame. The primary advantages to the C-frame design are an open work area and increased accessibility. The C-frame press features become even more advantageous when multiple presses are used for progressive operations with automated material handling moving parts from press to press. The C-Frame hydraulic presses, however, are generally limited in maximum tonnage due to the design.

The two post hydraulic press is basically a hybrid of the previous two designs. It has good accessibility of the work are for the operator and maintenance personnel while generally allowing for higher tonnage ratings than the C-frame press.

Capacity	Ton	10	20	30	50	80	100	150	200
Motor	HP	2	3	5	5	7.5	7.5	15	15
Stroke	mm	250	300	350	350	400	400	500	600
Size of Slide	mm	400x350	500x400	600x450	700x650	800x700	900x700	1100x725	1200x800
Size of Table	mm	500x400	600x450	700x450	800x600	900x600	1000x750	1200x800	1300x900
Open Height	mm	350	400	500	500	600	600	750	850
Gap	mm	250	250	300	300	350	400	450	500
Returnspeed	mm/sec	153	147	81	155	105	105	125	134
Advance Speed	mm/sec	68	53	39	75	92	92	103	90

Automatic Grade	Semi-Automatic
Brand	SHREERAM
Max Force or Load	0-30 ton, 30-60 ton, 60-90 ton, 90-120 ton, 120-150 ton, >150 ton
Model	SRI 150 C

1. PLC Control with digital operator interface
2. Meets or exceeds OSHA regulations for safety
3. Heavy duty industrial design with 4 to 1 safety factor
4. Guarding to individual specifications with E-Stop circuits
5. Minimal deflection design
6. Overload protection
7. NEMA rated panels
8. Oil cooler
9. JIC/NFPA standard components
10. IEC rated electric components
11. Full tonnage throughout stroke or cycle

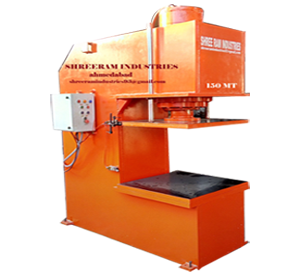

C-Frame Press Machine Shreeram Industries
