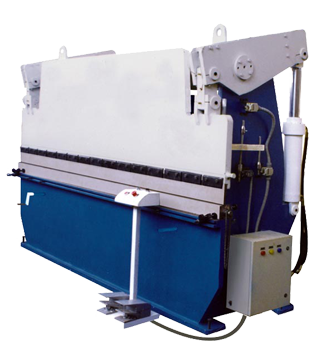

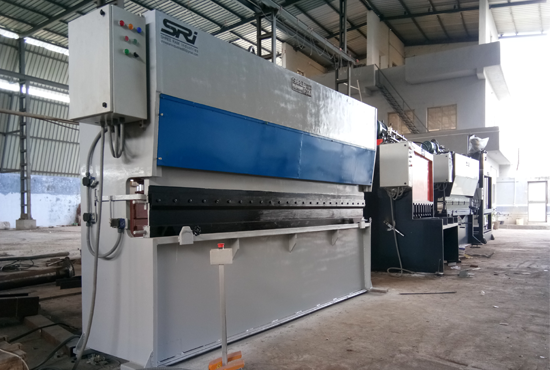

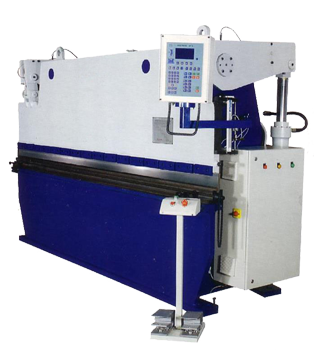

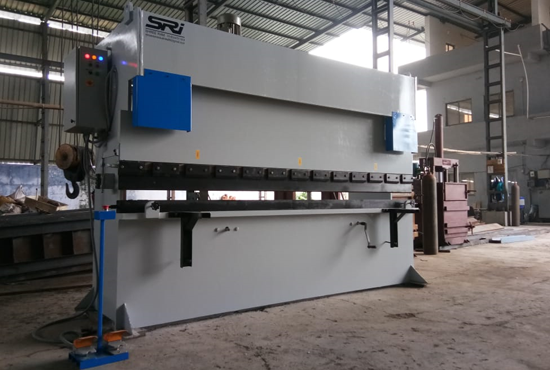

HYDRAULIC PRESS BRAKE

Shreeram industries presents to you one of most important sheet metal forming machinery mainly used to bend sheet/plate in different angles. Products like bus & truck body builder, electric panel, door, window frame and many more.

We are providing Front cylinder and rear cylinder hydraulic press-brake machine

Front cylinder Hydraulic press-Brake machine with Total clear-pass.

Range: 20MT to 400MT

Cutting length: 1250mm to 4000m

  • The stable robust welded steel frame made of ultrasonically tested IS 262 plates.
  • International quality electric components ensure trouble free operation over a period of time.
  • Hydraulic cylinders are designed with both low & high pressure sealing, hard chrome plated rod also with special type guide for long life without leakage.
  • Better rigidity & load carrying capacity against fatigue failure
  • Positive synchronization of cylinders with welded torque tube
  • Better safety for operator & machine
  • Low power consumption
  • Two speed system for higher productivity
  • Fast production on smaller jobs
  • NC up gradation possible
  • Low noise & smooth operation gives higher efficiency of operator

  • Main Drive Motor
  • Electric Control Panel
  • Hardened & ground Die & Punch
  • Front sheet support
  • Front operated with micro-adjustment manual back gauge
  • International quality hydraulics components. Specially designed compact manifold gives smooth, silent & jerk less operation.
Bending capacity (mm) Tonnage (MT)(mm) Table length(mm) Table width(mm) Clear pass(mm) Ram stroke(mm) Throat depth (mm) Open height(mm) Main power(HP)
1.5×1250 20 1250 150 950 150/200 200 300 3
1.5×1500 20 1500 150 1050 150/200 200 300 3
1.5×2500 30 2500 180 2050 150/200 300 300 5
3×1500 40 1500 180 1050 150/200 200 300 5
3×2000 50 2000 180 1550 150/200 300 300 5
3×2500 60 2500 180 2050 150/200 200/350 300 7.5
4×1500 50 1500 200 1050 150/200 200/350 300 7.5
4×2000 62 2000 200 1550 150/250 200/350 350/400 7.5
4×2500 80 2500 200 2050 150/250 200/350 350/400 10
4×3500 125 3500 200 3100 150/250 200/350 350/400 15
6×1500 80 1500 200 1050 150/250 200/350 350/400 7.5
6×2000 100 2000 230/250 1550 150/250 200/350 350/400 10
6×2500 125 2500 230/250 2050 150/250 200/350 350/400 15
6×3000 165 3000 230/250 2550 150/250 200/350 350/400 15
6×3500 200 3500 230/250 3100 150/250 200/350 350/400 20
8×1500 125 1500 230/250 1050 150/250 200/350 350/400 10
8×2000 130 2000 230/250 1550 150/250 200/350 350/400 15
8×2500 160 2500 230/ 250 2050 150/250 200/350 350/400 15
8×3000 200 3000 230/250 2550 150/250 200/350 400 20
8×3500 250 3500 300 3100 150/250 200/350 400 20
10×1500 140 1500 230/250 1050 150/250 200/350 350 15
10×2000 160 2000 230/250 1550 150/250 200/350 400 15
10×2500 200 2500 230/250 2050 150/250 200/350 400 20
10×3000 250 3000 300 2550 150/250 200/350 400 20
10×3500 300 3500 300 3100 150/250 200/350 450 20
12×1500 160 1500 230/250 1050 150/250 200/350 350 15
12×2000 200 2000 230/250 1550 150/250 200/350 400 20
12×2500 250 2500 300 2050 150/250 200/350 400 20
12×3000 300 3000 300 2550 150/250 200/350 450 25
12×3500 385 3500 300 3100 150/250 200/350 450 30
