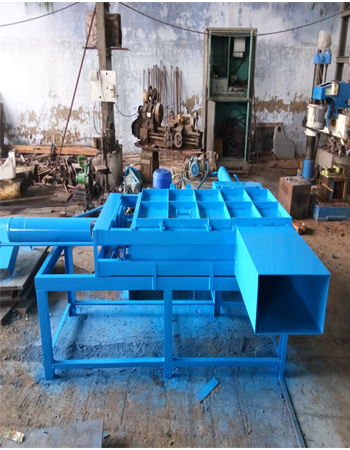

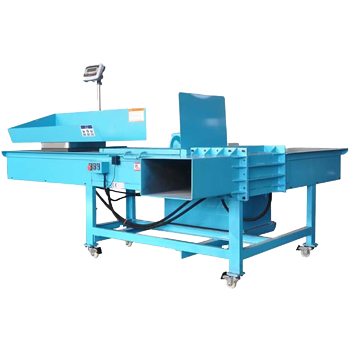

Shree ram industries scale -weighing Horizontal bagging baler is specialize in producing bagged bales for loose materials in small size, and then in -built scale is for you convience to control bale weight as per your needs.when you have waste like woods shaving,hay,straws,rags and similar,disposing of recycling these material is difficults. A horizontal bagging baler makes sense in such situation.because it can automatically compress,eject and bag these material for easy storage/transport/recycling.Some facilities even resell and bagged material to generate considerable value.

This machine is built with stored program with PLC.which helps keep operating running continuously and automatically. It is also very easy to use with simple one button operation. With minimal laber,it can produce and pack bales in plastic bags in matter of minutes.This horizontal bagging baler is ideal for pet food industries,animal bedding matrials factories,text tile recycling facilities,rag bale exporter,fertilizer factories,farm and anu other facility that produce a large amount of loose waste material in small pieces.

Model SHB1-SW-50 SHB1-SW-100 SHB1-SW-150 SHB1-SW-200 SHB1-SW-250
Feed Opening Length
Feed Opening Width
700mm(28")
400mm(16")
700mm(28")
400mm(16")
800mm(31")
550mm(22")
800mm(31")
550mm(22")
800mm(33")
600mm(24")
Compressing Length
Chamber Size Width
Height
1100mm(43")
400mm (16")
100mm(4")
1200mm(47")
400mm (16")
180mm(7")
1300mm(51")
550mm (22")
250mm(10")
1400mm(55")
550mm (22")
250mm(10")
1400mm(55")
600mm (24")
250mm(10")
Bale Size Length
Bale Size Width
Bale Size Height
400mm(16")
300mm(12")
100mm(4")
400mm(16")
400mm(16")
180mm(7")
550mm(22")
400mm(16")
250mm(10")
550mm(22")
450mm(18")
250mm(10")
600mm(24")
400mm(18")
250mm(10")
Bale Weight (For rag) 5-7 Kg
11-15 lbs
10-12 Kg
22-26 lbs
15-17 Kg
33-37 lbs
20-22Kg
44-48 lbs
25-27Kg
55-59 lbs
Hydraulic WorkingPressure(max) 14Mpa(2030psi) 14Mpa(2030psi) 14Mpa(2030psi) 14Mpa(2030psi) 14Mpa(2030psi)
Compressing Bore
Cylinder Pitson Rod
Stroke
100mm(3.9")
70mm(2.8")
800mm(31")
110mm(4.3")
80mm(3.1")
800mm(31")
110mm(4.3")
80mm(3.1")
900mm(35")
110mm(4.3")
80mm(3.1")
950mm(37")
110mm(4.3")
80mm(3.1")
950mm(37")
Ejecting Bore
Cylinder Pitson Rod
Stroke
100mm(3.9")
70mm(2.8")
500mm(20")
110mm(4.3")
80mm(3.1")
500mm(20")
110mm(4.3")
80mm(3.1")
700mm(28")
110mm(4.3")
80mm(3.1")
700mm(28")
110mm(4.3")
80mm(3.1")
700mm(28")
Oil Reservoir 120L(31.2gal) 120L(31.2gal) 120L(31.2gal) 120L(31.2gal) 120L(31.2gal)
Platen Pressure(kg/cm2) 36.6 18.5 13.3 11.8 11.8
Motor Power 5.5kw(7.5HP) 5.5kw(7.5HP) 7.5kw(10HP) 7.5kw(10HP) 11kw(15HP)
Cylinder time (unloaded) 42 seconds 37 seconds 34 seconds 35 seconds 36 seconds
Machine Weight(aaprox.) 760kg(1672lbs) 850kg(1870lbs) 900kg(1980lbs) 950kg(2100lbs) 1000kg(2200lbs)

  • PCL Control automates the opration and promotes accurcy.
  • One Button Opration makes comprresing, bale ejecting and bagging a continues and efficient Process.
  • Electric Controlled for simply opration,simply by oprating Buttons and Switches to fulfil platen moving and bale ejecting.
  • Options of one/two Feeding Shots Are Shots Available for achiving Different bale dencity and bale weight.
  • Electrical weighing scale For obtaining your desire bale weight by weighing the material before feeding.
