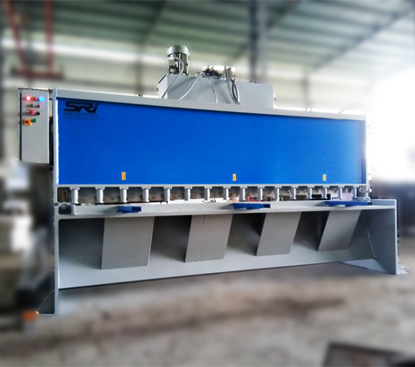

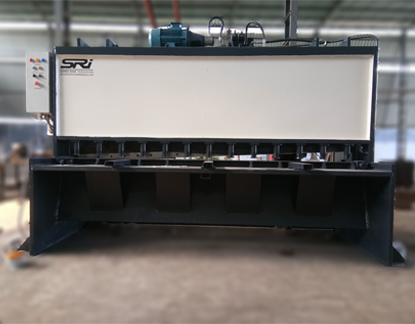

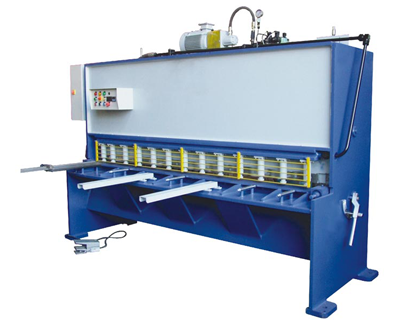

Hydraulic Shearing Machine

Shreeram industries presents to you a range of most technically advanced hydraulic shearing machines with all latest features. Mainly used for cutting heavy coil, plain sized sheet/plate.

Range: 1.5mm to 20mm

Cutting length: 1250mm to 4000mm

Low initial cost
Easy & Quick setting
Accurate repetition
Easy maintenance

Low tooling cost
Enormous versatility
User friendly

The stable robust, all welded steel frames from ultra sonically tested plates are of top quality. Raw & table designed with special inclined member & box type structure for maximum strength.
The top beam is guided by three point roller with replaceable hardened liners for least wear. This eliminates lubrication of steel to provide better quality of cutting for a longer time.
Rake angle can be varied to permit shearing of higher thickness than nominal capacity & facilitating distortion free shearing of thin sheets.
The fastest & easiest way of blade clearance setting without need of feeler gauge, which helps burr-free edges.
Positive holding by hydraulic hold downs before shearing avoids slippage of sheets & independent operation of hold downs for clamping of sheet helps checking of mark without taking shear stroke.
Hydraulic cylinder are designed with both low & high pressure sealing, hard chrome plated rod also with special type guide for long life without leakage.
Hydraulic components are of international quality standards & assembled on specially designed compact manifold block for easy maintenance.

Main Drive Motor
Electric Control Panel
Operational Console.
Pre selector switch to adjust rake angle

Lever operated blade clearance with calibration
Front sheet support
Hold down cylinders
Manual back gauge

Four edge HCHCR / HCSR blade Interchangeable & suitable to shear mild and St. Steel

Motorized back gauge with DRO
NC back gauge with ball screw
Second squaring arm on left side
Front support with roller according to required length

Rear sheet support
Ball transfer table
Stroke counter
First fill of hydraulic oil

Model	Cutting Thickness (mm)	Cutting width (mm)	Rake angle (0)	Main motor (HP)	No. of hold down
1.5×1500	1.5	1500	0.5-1.5	3	8
1.5×2000	1.5	2000	0.5-1.5	3	11
1.5×2500	1.5	2500	0.5-1.5	3	13
3×1500	3	1500	0.5-1.5	3	8
3×2000	3	2000	0.5-1.5	5	11
3×2500	3	2500	0.5-1.5	5	13
3×3000	3	3000	0.5-1.5	7.5	15
4×1500	4	1500	0.5-1.5	5	8
4×2000	4	2000	0.5-1.5	7.5	11
4×2500	4	2500	0.5-1.5	10	13
4×3000	4	3000	0.5-1.5	10	15
6×1500	6	1500	0.5-1.5	10	8
6×2000	6	2000	0.5-1.5	10	11
6×2500	6	2500	0.5-1.5	15	13
6×3000	6	3000	0.5-1.5	15	15
8×1500	8	1500	0.5-1.5	15	8
8×2000	8	2000	0.5-1.5	15	11
8×2500	8	2500	0.5-1.5	20	13
8×3000	8	3000	0.5-1.5	20	15
10×1500	10	1500	0.5-2	15	8
10×2000	10	2000	0.5-2	20	11
10×2500	10	2500	0.5-2	20	13
10×3000	10	3000	0.5-2	20	15
12×1500	12	1500	0.5-2	20	8
12×2000	12	2000	0.5-2	25	11
12×2500	12	2500	0.5-2	25	13
12×3000	12	3000	0.5-2	25	15
16×1500	16	1500	0.5-2.5	25	8
16×2000	16	2000	0.5-2	25	11
16×2500	16	2500	0.5-2.5	30	13
16×3000	16	3000	0.5-2.5	30	16
20×1500	20	1500	0.5-3	30	8
20×2000	20	2000	0.5-3	30	11
20×2500	20	2500	0.5-3	40	13
20×3000	20	3000	0.5-3	40	16
